specifications
360° continuous
–40° to 110° from horizontal
0.6 mrad (0.034°)
1920х1080
at least 2 km (1.2 miles)
0 - 70 ° / second
640х480 — 1280х1024
Azimuth (Horizontal) angle
Elevation (Vertical) angle
Gimbal slew rate
Gimbal slew accuracy
Thermal camera resolution
Human detection distance
RGB camera resolution
at least 1 km (0.6 miles)
20–40 VDC, 250W
281 х 281 х 370 mm (11 x 11 x 14.6 inches)
10 kg (22 lbs)
Human recognition distance
Weight
Dimensions (H × W × L)
Power
Key features
observation in challenging environments
built–in inertial navigation system
Data transmission
Built-in ai processing
Integration with external systems
Transmission of video stream and targets tracking data via wired or wireless communication channel
Eagle determines Own GPS coordinates and Coordinates of the captured target, parameters of its movement, regardless of mobility of the platform on which Eagle has been installed
No dependence of the quality of observation on environmental conditions, incl. on meteorological interference
Integration via API with any external security or other systmes and datastores

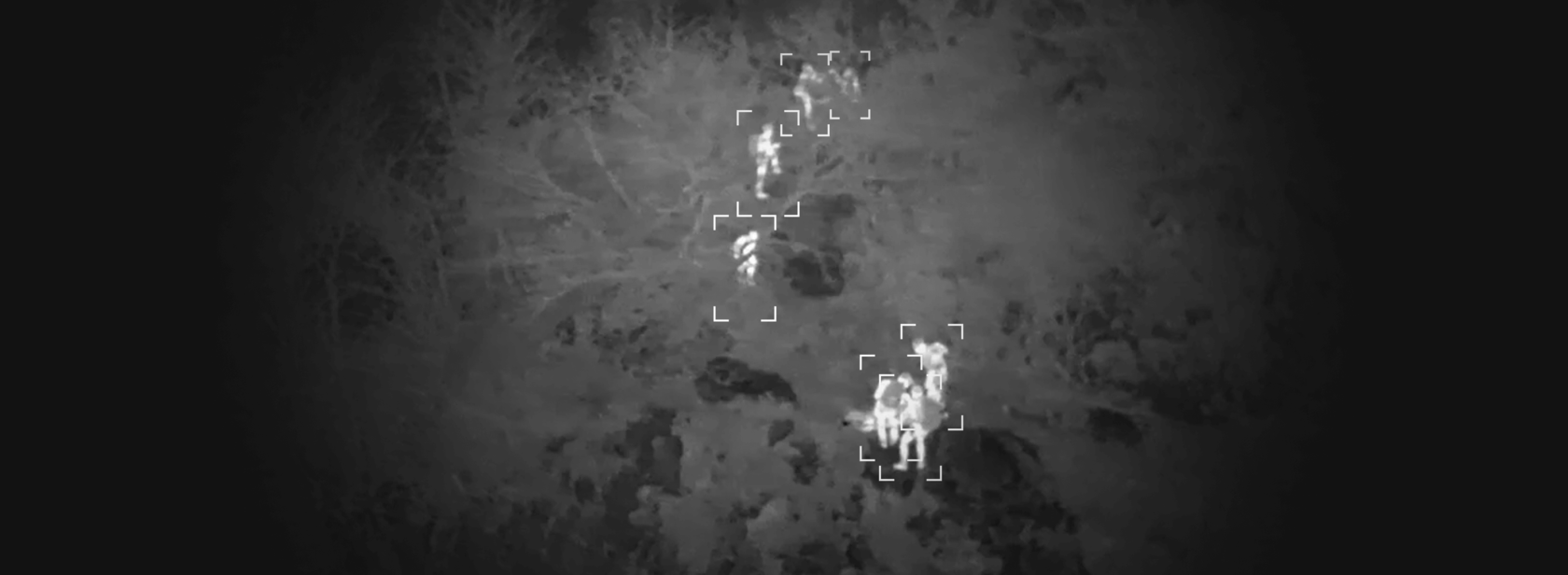

Automatic detection and tracking of targets of a given classes due to AI-based algorithms
Equipment
Laser designators
UV-Spectrum Camera
Thermal imaging cameras
Range-Gated Camera
Rangefin-ders
Rangefinders
Depending on the specifics of the task ELTEVIS Eagle can be equipped with various optical modules
Applications
Military special equipment
Protection of land territories, airspace, water areas
Protection of state borders
Mobile search and rescue equipment
Firefighting
Eagle is designed for installation on land transport, swimming facilities, air transport and aircraft (helicopters, airplanes, UAVs), stationary objects (masts, rooftops, observation points).
Security at sensitive facilities
