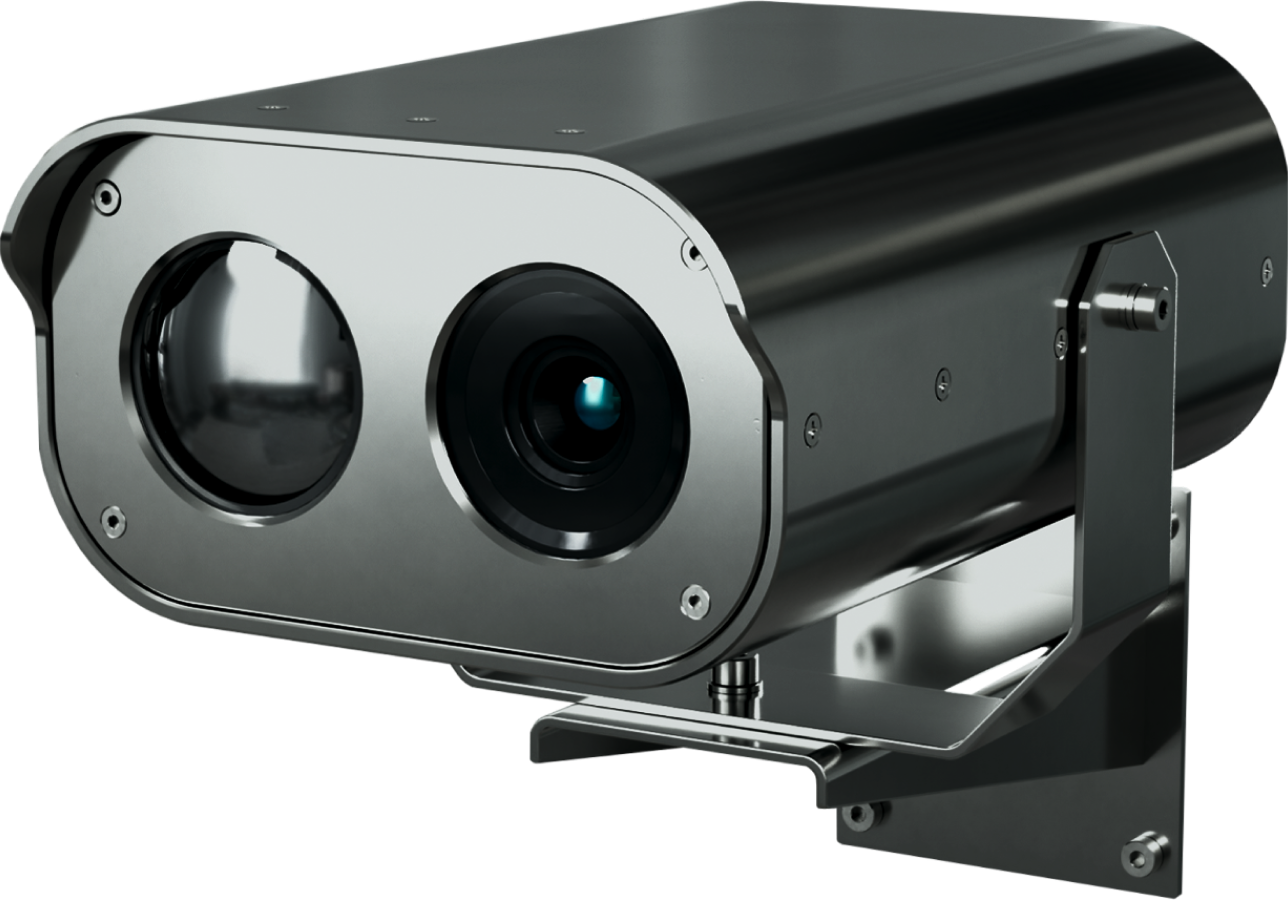

Key specifications
640x480 / 800х600 / 1280х1024 (optional)
LWIR 7–14 µm, NETD ≤50 mK
up to 50 FPS
automatic self–calibration
Gigabit Ethernet, WiFi, LTE
Uncooled VOx microbolo-meter
1920x1080, 30 FPS
Thermal Camera Resolution
Thermal Spectral Range, Thermal Sensitivity
Thermal Imaging Detector
Thermal Camera Frame Rate
RGB Camera
Network Interfaces
Shutter-less Mode
Wiegand, RS-485, “Dry-Contact”
-50°С to +65°С (with built-in heater)
30-45 °C / 0-150 °C / 0-500 °C
IEC IP68
External Interfaces
Enclosure Protection
Scene Temperature Range
Operating Temperature Range
built–in basic control scenarios
Temperature control
Perimeter crossing control (“Border Control”)
Anomalous approach to the border
A continuous monitoring of an area of interest in order to detect deviations of the measured temperature from the permissible range, or to identify abnormal dynamics of temperature change (too rapid heating, too rapid cooling etc.).
Control scenarios that detect more specific events can be developed by request
Control scenarios that detect more specific events can be developed by request
The detection of moving objects, their tracking
and subsequent control of the approach / intersection
of the user-defined “border” (conditional border in a certain area of the frame).
and subsequent control of the approach / intersection
of the user-defined “border” (conditional border in a certain area of the frame).
Exceeding the allowable time the object spent within the boundaries
Leaving the line (turning in the opposite direction)
Crossing the border without stopping
Use cases
technological processes control
container filling control
technological equipment control
Detection of terrain changes
Detection of warm–blooded animals
Monitoring the perimeter
Automatic detecting violations of perimeter boundaries by intruders even with using heavy equipment, and automatically notifies the operator about these events.

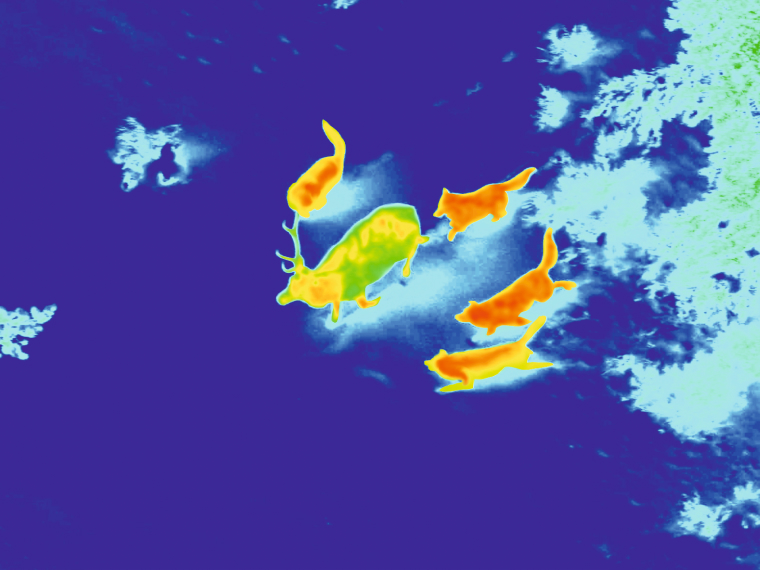

Search for animals, detection of predators and rodents regardless of environmental conditions. Automatic counting of livestock in open spaces is also available.

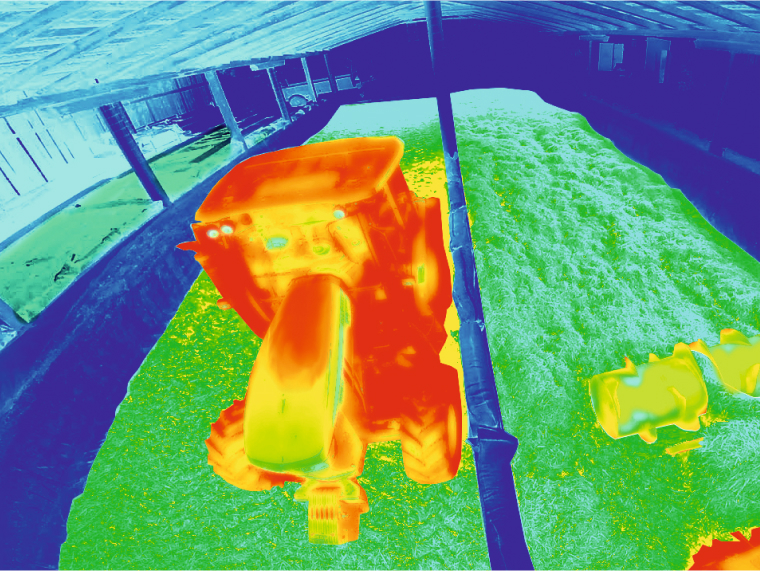

Assess the volume, filling dynamics or load of containers and storage tanks containing thermal contrast media, including liquids, viscous substances, bulk mixtures and fractions

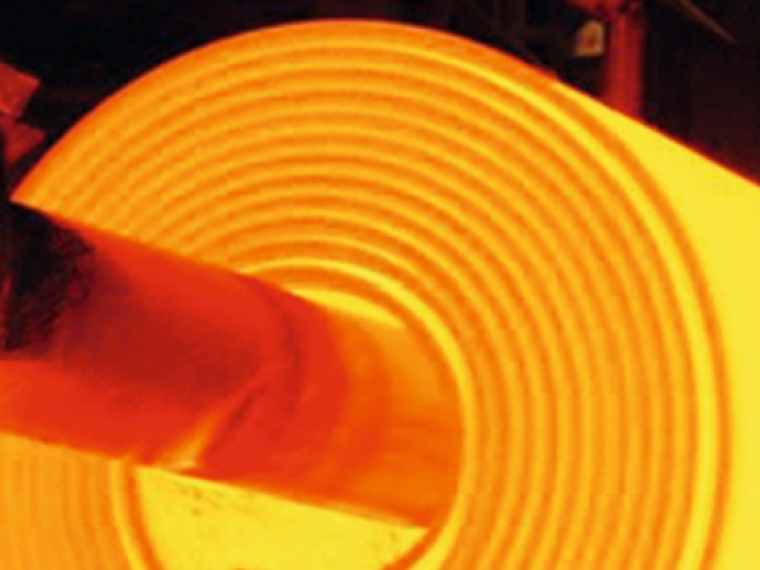

Automatic temperature distribution control in the volumetric heating zone (e.g. melting furnace), automatically detecting overheating zones and other anomalies for process control.

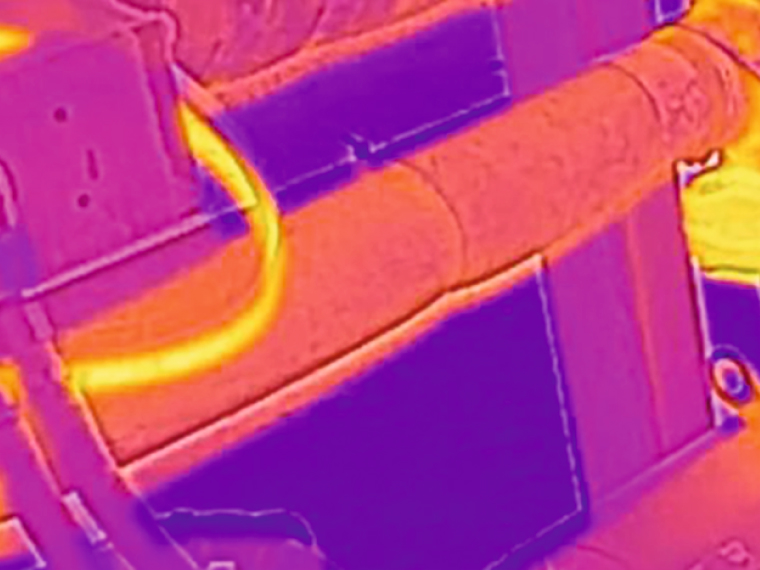

External control of the thermal regime and emergency risks of heavy technological equipment.

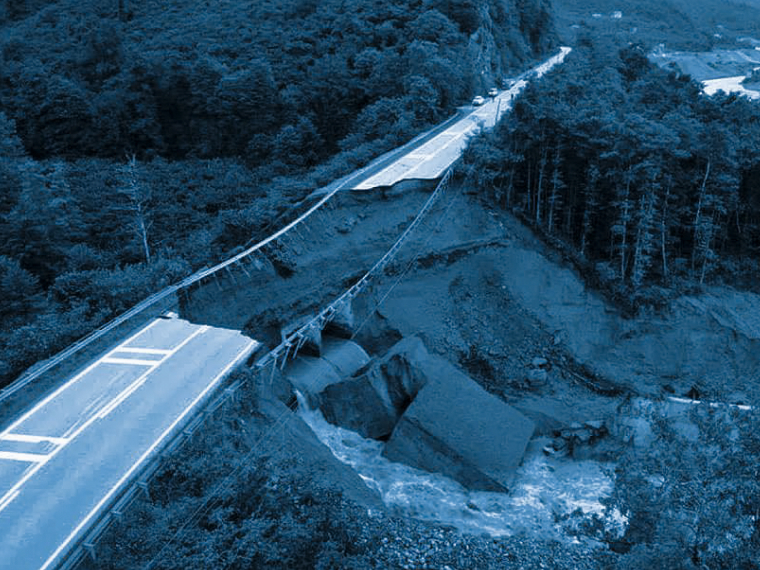

Detecting the appearance of structural changes in the background: landslides, falling trees, barricade, etc.
